RWC5020M-64 Tester for LoRa® / LoRaWAN®

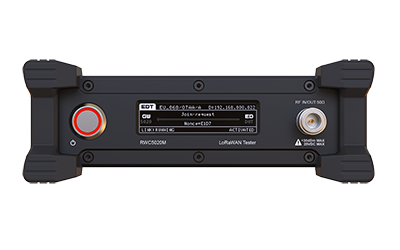

RWC5020M-64 Tester for LoRa® / LoRaWAN® - 1
RWC5020M-64 Tester for LoRa® / LoRaWAN® is a compact all-in-one tester offered with upto 64/96 channels, providing a perfect solution for testing and measuring LoRa® and LoRaWAN® technology. It is fully suitable for research and development (R&D), quality control (QC), and manufacturers. It offers various test functions that can be performed in signaling mode, such as activation procedures, as well as non-signaling mode. A fully automated PC software will assist users in testing and debugging their devices by conducting pre-certification tests specified by the LoRa Alliance®.

LoRaWAN® COMPLIANCE

Confirming that the End Device Meets the Functional Requirements of the LoRaWAN® Protocol Specification

RWC5020M pre-certification test is recommended for the purpose of pre-qualification. Since RWC5020M supports 8/16/64/96 channels, it can measure all the functions and performance of the DUT without channel limitations depending on the region.

Supported Pre-Certification Test Option

  • LoRaWAN Spec 1.0.2: EU 863-870, US+Canada 902-928, AS 923, KR 920-923, IN 865-867

  • LoRaWAN Spec 1.0.4: All regions supported (EU863, US902, AS923-1/2/3/4, KR920, IN865, AU915, RU864, EU433)

Supported LoRaWAN® Region

EU 868 EU 433 US 915 AU 915 CN 470 KR 920 AS 923 IN 865 RU 864

Supported LoRaWAN® Protocol

  • Compatible with V1.0.2, V1.0.3, V1.0.4 and V1.1.0

  • Class A / B / C support

  • Application Layer Package Certification Test

  • FUOTA (Firmware Update Over The Air) Test

LoRaWAN Compliance Diagram

LoRa® / LoRaWAN® TEST SOLUTIONS

✔ Protocol & Functional Test

  • Support of LoRaWAN® Pre-Certification Tests for all regions

  • Scenarios for transmission of MAC commands and user application data

  • FUOTA Test with user firmware binaries

✔ RF Test Solutions

  • RF Performance Tests for End-device – TX Power and RX Sensitivity

  • RF Performance Tests for Gateway – TX Power and RX Sensitivity

  • Semtech’s Non-regression Tests for Gateway – integrated with RWC2020A

  • LBT (Listen Before Talk) Test Solution for end-devices and gateways

✔ Manufacturing Test Solutions

  • Signal Generator and Signal Analyzer functions

  • Frequency Measurement Function

  • Separate TX/RX Tests with DUT controls (power, frequency, sensitivity)

  • Simultaneous TX/RX Tests (MFG) without wired DUT controls

✔ PC Application Software

  • Fully Automated for Execution of All Built-in Functions

  • Measurement and Test Data Logging

  • MAC and Application Protocol Messages Logging

LoRa/LoRaWAN Test Solutions Diagram
